All roads lead to IoT, from GERAN to RAN

January 25, 2016

All roads lead to IoT, from GERAN to RAN

Jan 25, 2016

January 25, 2016

2016 will see the largest single adjustment to the 3GPP Technical Specifications Group structure since the creation of the project, with the closure of the GSM/EDGE RAN (GERAN) committee and the expansion of the RAN TSG structure to accommodate its current workload and the maintenance of specifications.

Although this can be seen as the closure of the legacy group, there is considerable interest in the reorganization, as the work started in GERAN on Extended Coverage EGPRS joins the other two M2M projects - LTE enhancements for MTC (LTE-MTC) and Narrowband IoT (NB-IoT) within 3GPP RAN.

Text inspired by a video interview - Recorded at RAN#70, Sitges.

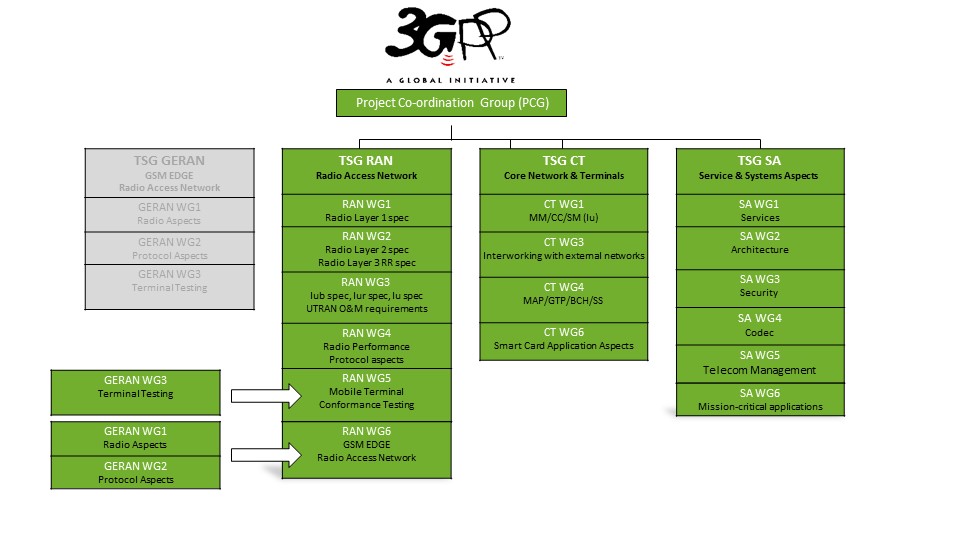

From mid 2016 the GERAN work is set to be transferred in to two RAN Working Groups - RAN 5 for test cases and a new group - RAN 6 for the radio and protocol aspects.

Olof Liberg (GERAN Chair) says “All-in-all this will be a simplification of the organizational set up in 3GPP, it will become crystal clear where the responsibility for the development as well as the maintenance of the 3GPP radio work lies.”

'IoT'

700023	FS_SMARTER – massive Internet of Things	FS_SMARTER-mIoT	3	Rel-14	S1	SP-150817
700012	Cellular (Narrowband) Internet of Things	CIoT	1	Rel-13
700016	Stage 2 of CIoT	CIoT	2	Rel-13	S2	SP-150844
700046	Security Aspects of CIoT (aka NB-IoT)	CIoT	2	Rel-13	S3	SP-150844
700013	CT aspects of CIoT	CIoT-CT	2	Rel-13	C1	CP-150795
700014	CT1 aspects of CIoT	CIoT-CT	3	Rel-13	C1	CP-150795
700051	CT3 aspects of CIoT	CIoT-CT	3	Rel-13	C3	CP-150795
700015	CT4 aspects of CIoT	CIoT-CT	3	Rel-13	C4	CP-150795
700052	CT6 aspects of CIoT	CIoT-CT	3	Rel-13	C6	CP-150795
690063	RAN aspects of CIoT aka Narrowband Internet of Things (IOT)	NB_IOT	2	Rel-13	R1	RP-151621
690163	Core part: Narrowband Internet of Things (IOT)	NB_IOT-Core	3	Rel-13	R1	RP-152284
700257	Perf. part: Narrowband Internet of Things (IOT)	NB_IOT-Perf	3	Rel-13	R4	RP-152284
690006	Extended Coverage GSM (EC-GSM) for support of Cellular Internet of Things	CIoT_EC_GSM	1	Rel-13	G1,G2	GP-151039
700003	Extended Coverage GSM (EC-GSM) for support of Cellular Internet of Things	CIoT_EC_GSM-Core	2	Rel-13	G1,G2	GP-151039
700004	Extended Coverage GSM (EC-GSM) for support of Cellular Internet of Things	CIoT_EC_GSM-Test	2	Rel-13	G1,G2	GP-151149
640001	Study on Cellular system support for ultra Low Complexity and low throughput Internet of Things	FS_IoT_LC	1	Rel-13	G1,G2	GP-150354
670029	Study on architecture enhancements of cellular systems for ultra low complexity and low throughput Internet of Things	FS_AE_CIoT	1	Rel-13	S2	SP-150167
670093	Study on EGPRS Access Security Enhancements with relation to cellular IoT	FS_EASE_IoT	1	Rel-13	S3	SP-150145

LTE_MTC

650033	Further LTE Physical Layer Enhancements for MTC	LTE_MTCe2_L1	1	Rel-13	R1,R4,R2	RP-141660
650133	Core part: Further LTE Physical Layer Enhancements for MTC	LTE_MTCe2_L1-Core	2	Rel-13	R1,R2,R4	RP-150492
650233	Perf. Part: Further LTE Physical Layer Enhancements for MTC	LTE_MTCe2_L1-Perf	2	Rel-13	R4	RP-150492

Contact for this article: Kevin FLYNN, Marketing and Communications Officer, 3GPP
